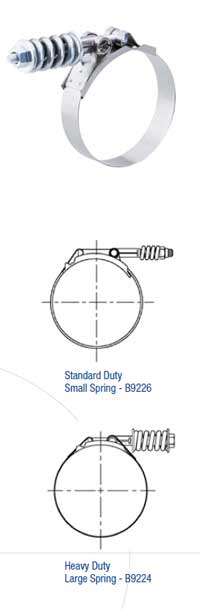

| Breeze Spring-Loaded T-Bolt clamps provide comprehensive application coverage and are performance engineered. They meet the same durability, torque and quality standards as the standard Breeze T-Bolt clamps. The spring design adds constant tension performance. Available in standard and heavy duty springs. |
 |
|
3/4” (19mm) band
Per SAE standard J1508 Type “SLTB”
|
 |
|
CALL FOR PRICING
|
|
|
|
|
|
|
|
|
|
|
| 40 |
2.13 |
54 |
2.44 |
61.9 |
-0213 |
-0213 |
| 44 |
2.25 |
57.2 |
2.56 |
65.1 |
-0225 |
-0225 |
| 48 |
2.38 |
60.3 |
2.69 |
68.3 |
-0238 |
-0238 |
| 52 |
2.5 |
63.5 |
2.81 |
71.4 |
-0250 |
-0250 |
| 56 |
2.63 |
66.7 |
2.94 |
74.6 |
-0263 |
-0263 |
| 60 |
2.75 |
69.9 |
3.06 |
77.8 |
-0275 |
-0275 |
| 64 |
2.88 |
73 |
3.19 |
81 |
-0288 |
-0288 |
| 68 |
3 |
76.2 |
3.31 |
84.1 |
-0300 |
-0300 |
| 70 |
3.06 |
77.8 |
3.38 |
85.7 |
-0306 |
-0306 |
| 72 |
3.13 |
79.4 |
3.44 |
87.3 |
-0313 |
-0313 |
| 76 |
3.25 |
82.6 |
3.56 |
90.5 |
-0325 |
-0325 |
| 80 |
3.38 |
85.7 |
3.69 |
93.7 |
-0338 |
-0338 |
| 84 |
3.5 |
88.9 |
3.81 |
96.8 |
-0350 |
-0350 |
| 86 |
3.56 |
90.5 |
3.88 |
98.4 |
-0356 |
-0356 |
| 88 |
3.63 |
92.1 |
3.94 |
100 |
-0363 |
-0363 |
| 92 |
3.75 |
95.3 |
4.06 |
103.2 |
-0375 |
-0375 |
| 102 |
4.06 |
103.2 |
4.38 |
111.1 |
-0406 |
-0406 |
| 104 |
4.13 |
104.8 |
4.44 |
112.7 |
-0413 |
-0413 |
| 108 |
4.25 |
108 |
4.56 |
115.9 |
-0425 |
-0425 |
| 116 |
4.5 |
114.3 |
4.81 |
122.2 |
-0450 |
-0450 |
| 118 |
4.56 |
115.9 |
4.88 |
123.8 |
-0456 |
-0456 |
| 132 |
5 |
127 |
5.31 |
134.9 |
-0500 |
-0500 |
| 140 |
5.25 |
133.4 |
5.56 |
141.3 |
-0525 |
-0525 |
| 148 |
5.5 |
139.7 |
5.81 |
147.6 |
-0550 |
-0550 |
| 156 |
5.75 |
146.1 |
6.06 |
154 |
-0575 |
-0575 |
| 164 |
6 |
152.4 |
6.31 |
160.3 |
-0600 |
-0600 |
| 172 |
6.25 |
158.8 |
6.56 |
166.7 |
-0625 |
-0625 |
| 180 |
6.5 |
165.1 |
6.81 |
173 |
-0650 |
-0650 |
| 196 |
7 |
177.8 |
7.31 |
185.7 |
-0700 |
-0700 |
| 204 |
7.25 |
184.2 |
7.56 |
192.1 |
-0725 |
-0725 |
| 212 |
7.5 |
190.5 |
7.81 |
198.4 |
-0750 |
-0750 |
|
 |
* 200 series also available with thumb/wing screw (replace “H” with “W”) and safety collared screw (replace “H” with “S”).
Also available in 316 stainless steel as special order |
